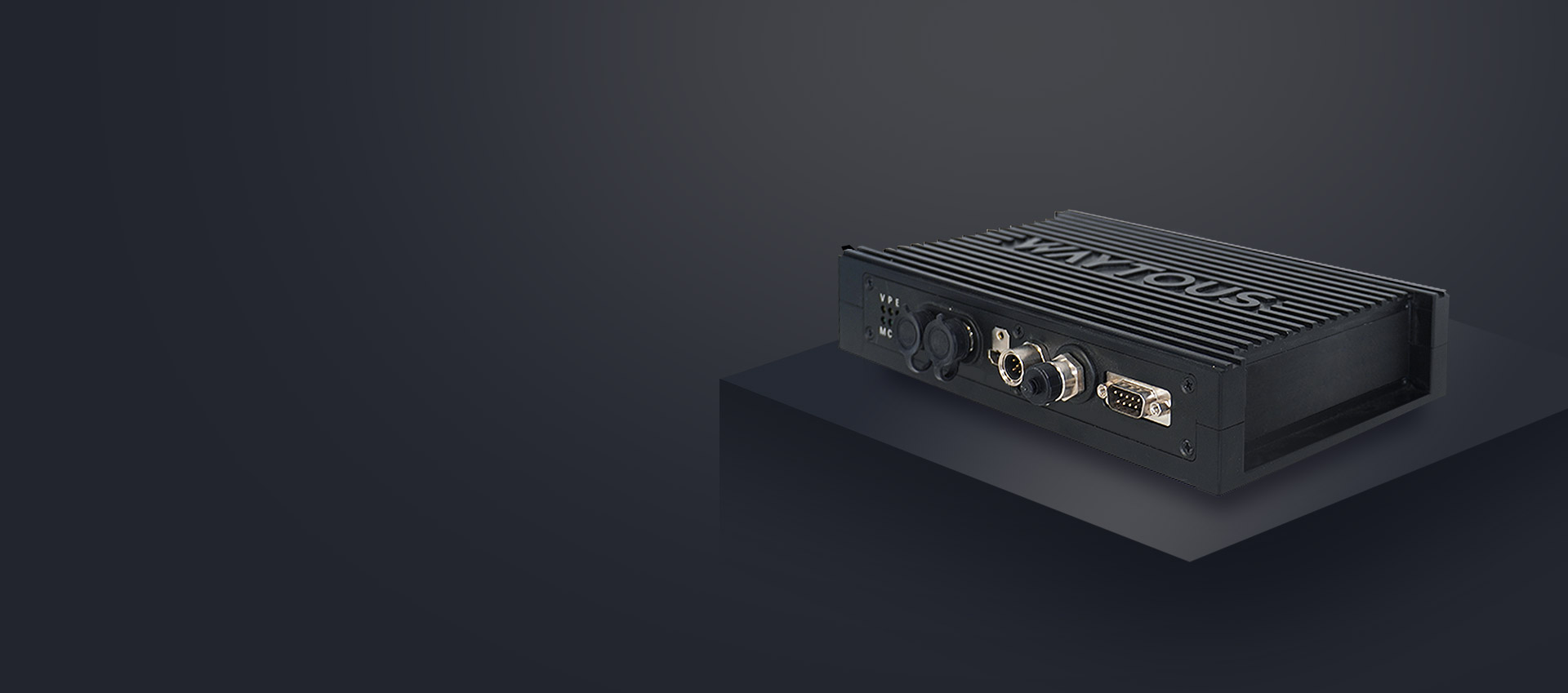

V2X Terminal

It is equipped with a high-performance AG 4-core ARM A53 processor, multiple interfaces such as GigE, CAN, RS232, HDMI and USB, multiple communication modes such as 4G/5G/V2X, and a GNSS positioning module, easy to expand and integrate. Through V2X communication, vehicle-to-vehicle, vehicle-to-roadside-equipment and vehicle-to-cloud communication links can be established; the GNSS system supports sub-meter-sized vehicle positioning and even supports upgrading to RTK high-precision centimeter-sized vehicle positioning; through 4G/5G communication, vehicle running track record submission, vehicle data collection and reporting, and remote vehicle query are enabled.

Product Features

High scalability

high integration

AG design

Technical parameters

Processor and memory

CPU :
4-Core A53 @ 1.8GHz

Internal memory :
2GB(LPDDR4)RAM+8GB EMMC

External Interface

Industrial Ethernet interface :
1-channel 10/100/1000M aviation plug interface

V2X :
V2X UU, PC5 direct communication
USB :
1-channel 5pin aviation plug interface

LTE :
5G for all kinds of networks, AG LTE module, compatible with 4G/3G/2G networks
CAN :
1-channel CAN interface

GNSS :
Multi-mode sub-meter-sized positioning such as Beidou, GPS, GLONASS, Galileo, and QZSS; supports upgrading to high-precision centimeter-sized positioning
Video output:
1-channel HDMI1.4 interface, support audio transmission
